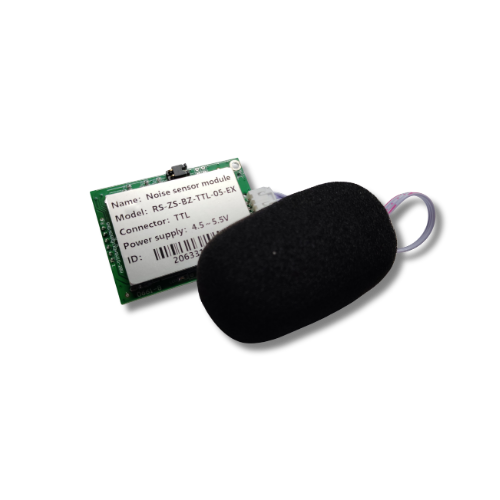

Sound Detection Sensor, noise sensor module

40000.0 INR/Unit

Get a Price/Quote

Product Details:

Color Grey
Product Type Sound Detection Sensor, noise sensor module
Application Industrial
Operating Voltage 3.3 Volt (V)
Operating Temperature 50 Celsius (oC)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Sound Detection Sensor, noise sensor module Price And Quantity

Minimum Order Quantity 10 Piece
Price 40000.0 INR/Unit

Sound Detection Sensor, noise sensor module Product Specifications

Color Grey
Operating Voltage 3.3 Volt (V)
Product Type Sound Detection Sensor, noise sensor module
Application Industrial
Operating Temperature 50 Celsius (oC)

Sound Detection Sensor, noise sensor module Trade Information

FOB Port NEW DELHI
Payment Terms Paypal Cash on Delivery (COD) Cheque
Supply Ability 100 Piece Per Month
Delivery Time 10 Days
Sample Available Yes
Sample Policy Contact us for information regarding our sample policy
Packaging Details cardboard packaging
Main Export Market(s) Asia
Main Domestic Market All India
Certifications IOS

Product Description

The sound sensor module provides an easy way to detect sound and is generally used for detecting sound intensity. This module can be used for security, switch, and monitoring applications. Its accuracy can be easily adjusted for the convenience of usage. It uses a microphone which supplies the input to an amplifier, peak detector and buffer. When the sensor detects a sound, it processes an output signal voltage which is sent to a microcontroller then performs necessary processing. Sound detection sensor module for arduino detects whether sound has exceeded a threshold value. Sound is detected via microphone and fed into an LM393 op amp. The sound level set point is adjusted via an on board potentiometer. When the sound level exceeds the set point, an LED on the module is illuminated and the output is set low. Specifications of sound detection sensor module: Working voltage: DC 3.3-5V Adjustable Sensitivity Dimensions: 32 x 17 mm Signal output indication Single channel signal output With the retaining bolt hole, convenient installation Outputs low level and the signal light when there is sound Output in the form of digital switching outputs (0 and 1 high and low)
